CHARGER WITH LCD DISPLAY 6V AND 12V

       Charger

• Suitable for 6V and 12V lead-acid wet, gel, and AGM batteries
• Battery capacity: 1.2Ah – 14Ah (6V), 1.2Ah-120Ah (12V)
• Protections: Short-circuit / Overvoltage
• Selectable charging current: 1A (6V), 1A/4A (12V)

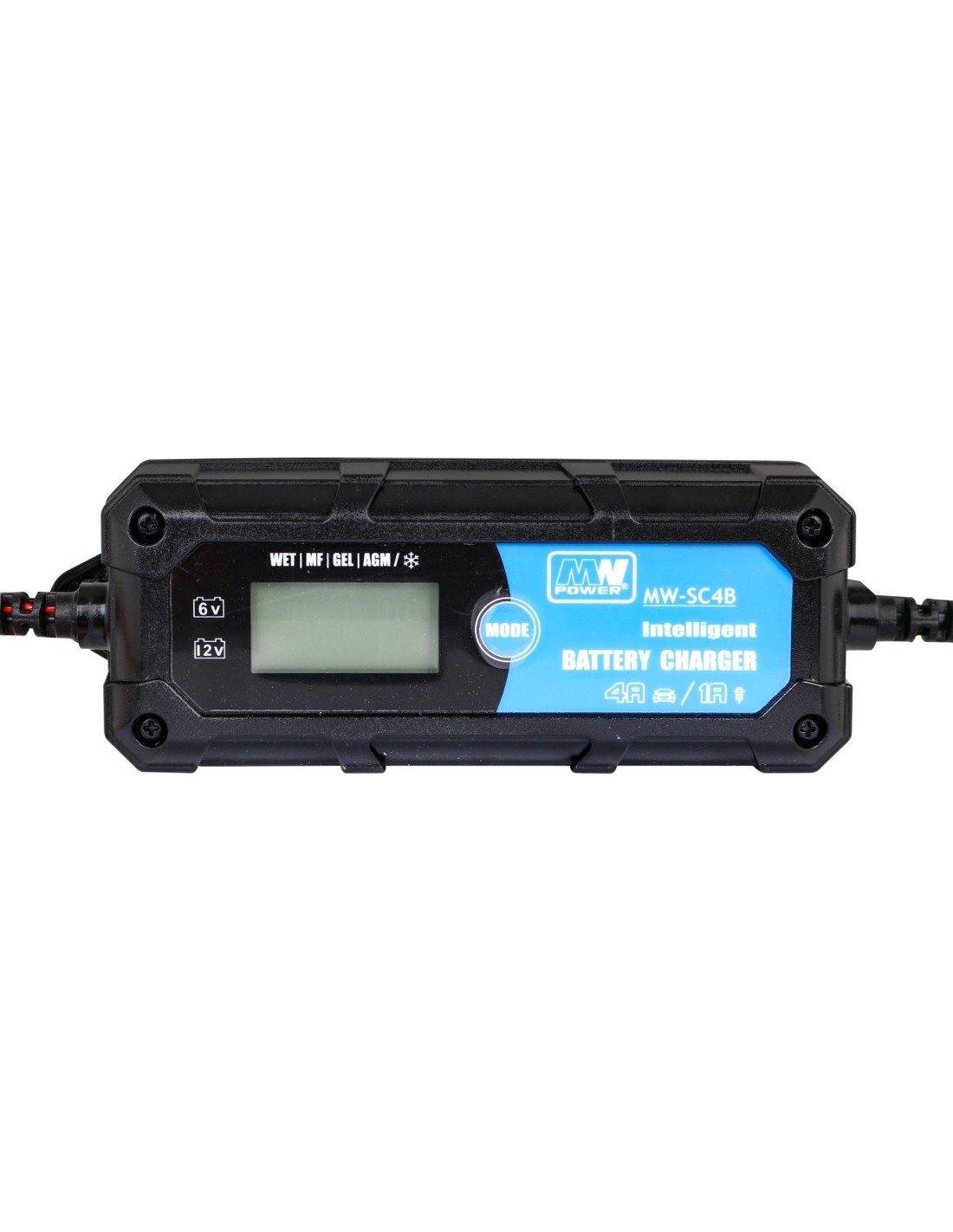

• LCD display, user-friendly interface, microprocessor controlled
• Battery status detection, desulfation mode

• Input voltage: 220-240V (50Hz)
• Input current (max.): 0.75A/230VAC

• Output voltage (max.): 7.4V - Output current: 1A
• Output voltage (max.): 14.7V - Output current: 1A / 4A (selectable)

• Overvoltage >16VDC (12V mode), >32V (24V mode), output voltage disconnection
• Short-circuit: Output voltage disconnection, display notification

• Operating temperature: -5 to +40 degrees celsius
• Operating humidity: 20-90% (relative humidity, non-condensing)
• Storage temperature and humidity: -10 to +60 degrees celsius, 10-95% (relative humidity, non-condensing)

• Safety standards EN 60335-2-29:2004 + A2:2010; EN 60335-1:2012 + A11:2014
• EMC standards EN 55014-1, EN 61000-3-3, EN 55014-2, EN 61000-3-3, EN-61000-3-2
